FIRE PRODUCTS
split case
Experience gained from extreme environments such as offshore oil & gas installations has led to the creation of the SyncroFlo FM/UL Thrustream range of fire pumps. The Thrustream range has been approved for fire protection by FM Approvals and Underwriter Laboratories.
SyncroFlo Thrustream FM/UL Approved Fire Pumps are available for duties ranging from 200 USgpm to 5000 USgpm and are suitable for electric or diesel drives. SyncroFlo also supplies Vertical, End-Suction and In-line pumps. SyncroFlo Thrustream FM/UL Approved Fire Pumps are available with either inch or metric fittings.
TYPICAL INSTALLATIONS:
• Office buildings
• Hospitals
• Airports
• Manufacturing facilities
• Power stations
• Pharmaceutical facilities
• Schools/College
vertical in-line
SyncroFlo Vertical In-Line Pumps are available for duties up to 1500 USgpm and are suitable for electric drives only. SyncroFlo Vertical In-Line pumps can also be offered as pre-wired packages that include a limited or full service controller. Every package is mounted on a steel fabricated base with the motor wired to the controller. The automatic air relief valve, casing relief valve, suction gauge and discharge gauge are mounted on their respective spool pieces. Additional piping, valves and sensing lines are available with the In-Line packages. The SyncroFlo In-Line package system also includes a jockey pump and jockey pump controller.
TYPICAL INSTALLATIONS:
• Office buildings
• Hospitals
• Airports
• Manufacturing facilities
• Power stations
• Pharmaceutical facilities
vertical turine
Whether the fire protection water source is located below ground or deck level, the best technical pumping solution is the Vertical Suspended Multi Stage Turbine Pump. With this type of unit, the impellers are fully immersed in the water and maintain prime at all times. The pumps are driven by vertical electric motors or by diesel engines through a right angle gearbox.
SyncroFlo Vertical Turbine pumps can be custom engineered for the oil and gas industry and can handle fresh water or sea water for cooling purposes, fire protection duties, general water supply and washdown or drill water. They can also be used for handling crude oil or controlling spillages. For platform or jetty locations, they can be provided with a below-deck discharge.
TYPICAL INSTALLATIONS:
• Office buildings
• Hospitals
• Airports
• Manufacturing facilities
• Power stations
• Pharmaceutical facilities

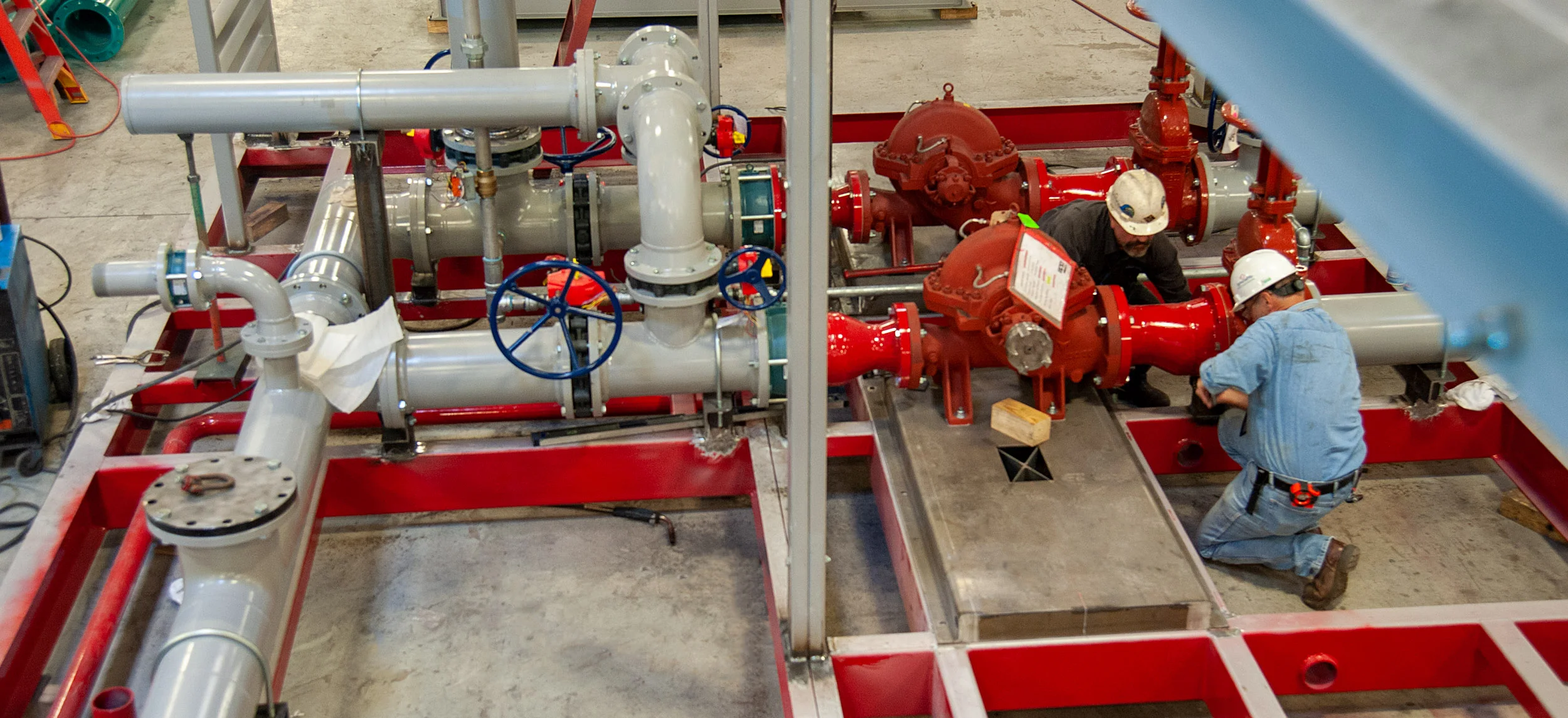

fire pump packages
From the simplest single pump system to the most complex multi-pump system with environmental enclosures, SyncroFlo packaged pumping systems are the solution to your specific application. Everything is designed to your project specifications. Whether you have a small pump skid being installed in a pump room or a large industrial system with multiple pump and driver combinations complete with enclosure, we have the right solution for you. All fire systems are manufactured in accordance with NPFA 20 and NEC. The product arrives on site, ready to be installed and put into operation faster and more cost efficient than traditional site built systems.
Pump Types:
Flex Coupled End Suction, Vertical Inline, Horizontal Split Case & Vertical Turbine
